Solar LED Street Light
NEOSUN Energy has teamed up with Phillips to produce the highest quality Solar Street Lights that can emit up to 7200lm of illumination.
Solar LED Street Light
NEOSUN Energy has teamed up with Phillips to produce the highest quality Solar Street Lights that can emit up to 7200lm of illumination.
The Next Generation
of the Solar Street Light
NEOSUN Solar Street Lights were uniquely designed to meet the demanding performance and lightning needs of virtually any application. Our Street Lights utilize innovative technology while maintaining simplicity and durability. The unique flexible design allows installations on roadways, parking lots, parks, walkways, and even be used to decorate your home’s landscaping.With variety of different modes programmable through a remote control the off-grid installation could achieve up to.
Induction Sensor
Microwave (Radar) sensor is adopted in this light in order to save more energy. Energy saving mode is adjustable bythe remote control easily. Radar sensor is more sensitivethan PIR sensor in much wider angle and longer distance ,And it can be trigered easily with slight movements. Thebest sensitive distance from people / object to light sensorshould be within 12 meters.
PIR sensor is optional
Product Features
NEOSUN Energy provides customised solar PV power solutions for commercial, agricultural and industrial properties to offer maximum flexibility and efficiency in the generation, consumption and storage of solar power. With NEOSUN Energy, your business will have the opportunity to leverage world-class solar solutions with little capital costs. Read more about our EPC offering.
Lithium Battery Pack
High temperature resistant, up to 2000 cycles lifetime. (DOD 70%) Smart BMS protection
Philips SMD LED Source
More LEDs is used, drived with lower current, achieving more than 150lm/w. High efficiency than normal solar lights
MPPT Solar Controller
Higher chagring efficiency than PWM conctrollers, Ensuring enough power generated for every night
Microwave (Radar) Sensor
PIR sensor, longer distance and detective angle. IP65 waterproof

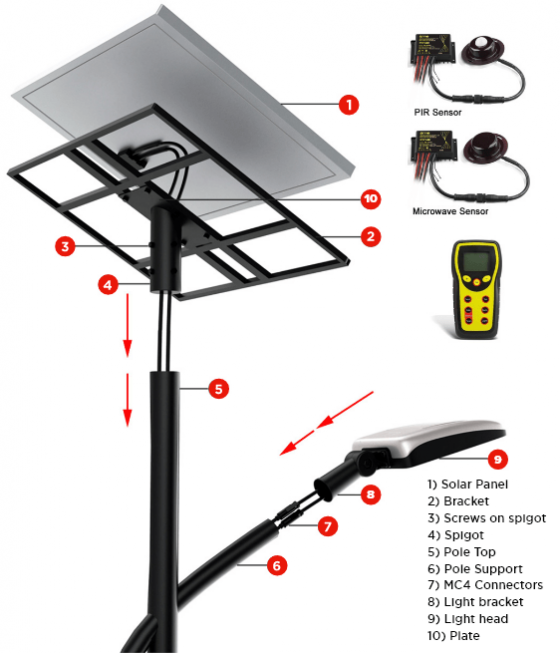

Structure and components of NEOSUN Solar LED Street Light
| System | LED Power | Philips LED Qty | Effiency | Lithium Batter | Solar Panl | Pole (optional) |
| NS-U20W | 20 W | 36 pcs | >2600lm | 268WH (up to 15 hours) | 50W~110W | 3m~7m galvanised steel |
| NS-U30W | 30 W | 48 pcs | >4200lm | 391WH (up to 15 hours) | 70W~110W | 3m~7m galvanised steel |
| NS-U40W | 40 W | 72 pcs | >5500lm | 488WH (up to 15 hours) | 90W~110W | 3m~7m galvanised steel |
| NS-U50W | 50 W | 72 pcs | >6500lm | 548WH (up to 15 hours) | 100W~110W | 3m~7m galvanised steel |
| NS-U40W | 60 W | 72 pcs | >7200lm | 635WH (up to 15 hours) | 110W~110W | 3m~7m galvanised steel |

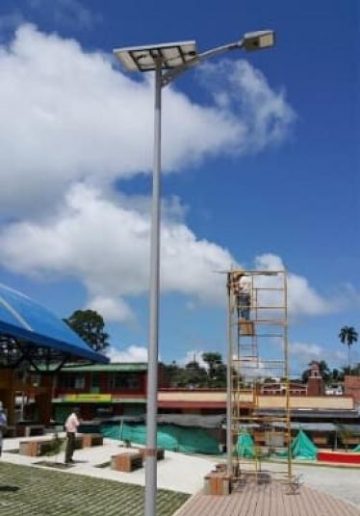

Cases
NEOSUN Energy is an international high-tech company, manufacturer of a new generation solar panels, developer and installer of comprehensive solar energy solutions for industrial and agricultural use, remote villages, telecommunication and mining industry.
