NEOSUN™ Duo

Bifacial Half-Cut PERC solar module with power gain up to 25% bringing your plants to 600W+ solar era

NEOSUN™ Duo

Bifacial Half-Cut PERC solar module with power gain up to 25% bringing your plants to 600W+ solar era

NEOSUN™ Ultra Solar PV Panels (Mono PERC Half-Cut)

Power range
540 – 550W
Solar cells
PERC, 9BB, Half-Cut
Module efficiency
up to 21.5%
Module size
2285 × 1134 × 30 mm
Warranty
30 year power warranty
Weight
33 kg
Solar panel image

Get up to 25% additional power gain from the backside of the bifacial NEOSUN™ Duo module. It has significant gains on grass land, dry sand, and especially in snowfields. Based on the advanced mono wafer and PERC Half-cut technology, Duo brings your plants to a 500W+ solar era.

The combination of Half-Cut PERC cell technology and bifacial module amplifies the power gain up to a tremendous 550W and will help you to achieve the lowest LCOE possible.

Solar panel image

Up to 25% more energy from the same installation area

NEOSUN Duo is designed to bring you better ROI under the same installation area. Under any irradiation conditions, the bifacial Half-Cut PERC module will have a higher energy yield than any other module. With uncompromised energy gain, Duo generates up to 25% more power, reduce the installation area, and delivering the best LCOE possible. Advanced 9BB Half-Cut cells with PERC technology provide efficiency up to 23.2% (up to 21.5% module efficiency).

Combined with its less than 0.5% annual power degradation, higher energy yield, and 30-year power warranty, NEOSUN™ Duo lets you recoup your ROI much faster resulting in more long-term energy and savings than ever.

23.2 %

Cell efficiency

PERC

Technology

+25 %

Positive Power Tolerance

30 year

Power warranty

Solar panel images

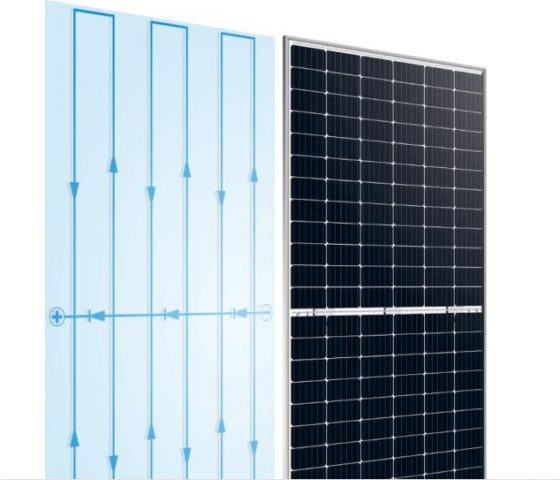

Half is the New Full

The laser separation of cells into two separate parts reduces resistance, increases productivity and durability of the element which together allows increasing the module efficiency up to new industry-standard 23.2%

Solar panels by NEOSUN Energy comply with international standards such as IEC, CE etc.

Durability

Enhanced 30 mm module frame and double iron-free 2 mm tempered glass allow withstanding snow load up to 5400 Pa, wind load up to 2400 Pa.

Lower Shading Loss

Due to the unique parallel connection system and operating voltage up to 1500V NEOSUN Duo modules continue to generate energy in low light conditions at sunset, dawn, or on cloudy days.

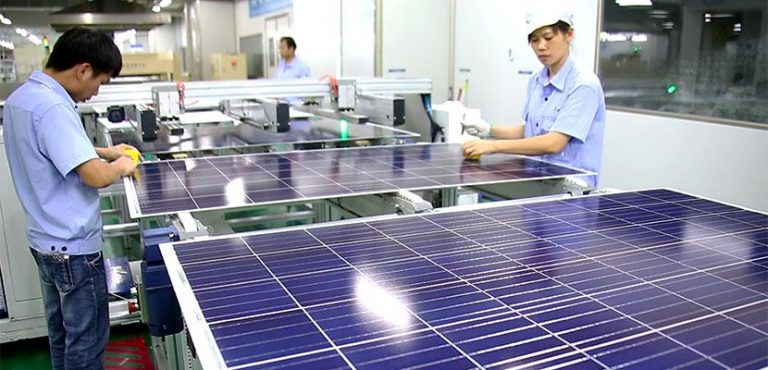

Our technology and production lines

Quality focus starts from product inception. The engineering team places a major emphasis on both process and equipment capabilities. We tightly control quality over every step of the manufacturing process, from silicon crystallization to module deployment in the field. Every material going into the product is heavily tested during the manufacturing process to ensure the highest quality standard and level of reliability.

Video poster

NEOSUN™ Duo cases

Our team of experts on global PV projects handles the design and construction of solar power stations worldwide, ranging from commercial systems of a few hundred kilowatts to utility-scale solar projects measured in megawatts. Our ever-expanding portfolio and wide experience enable us to offer customers a turnkey solution that includes integrated design, faster deployment, and lower system costs. Please have a look at some of our recent projects.
